Product Details

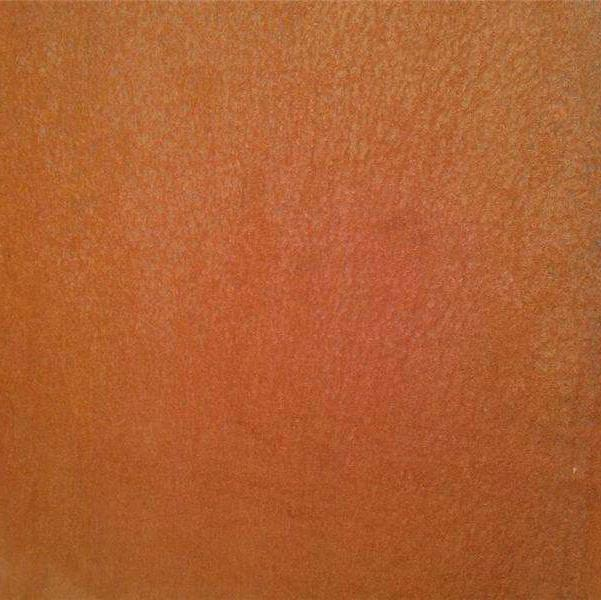

Corten steel, also called Cor-Ten steel, is a weathering steel that resists corrosion but is not rust-proof. This steel alloy is widely used in landscaping and other outdoor applications because it forms a protective layer of rust after approximately six months of exposure to moisture and oxygen. Since the rust layer (patina) protects the steel from further corrosion, it does not require painting or additional weatherproofing.


ZLYS Steel

Corten Steel Plates Stockist

Corten Steel Plates Supplier

Type 2 Corten Steel Plates

EN 10025 S355jow Corten Steel Plates

Corten gr.a High Tensile Steel Plates

ASTM a242 gr.a Cold-rolled Plates Manufacturer

A242 Grade a Plate Supplier




We are a maker, merchant, stockist, provider and exporter of Corten Steel Plates, both Corten Plates, that are eminent for their climate safe capacities and high quality, and, A242 Grade A Plates, which are light bodies and frame a defensive outside layer to keep erosion under control.

Our DIN 1.8945 Corrosion safe plates are utilized for building solid houses and structures other than being low upkeep and weldable as well. We supply ASTM A 588 Grade A steel plates to the scaffold and furniture and ship development industry.

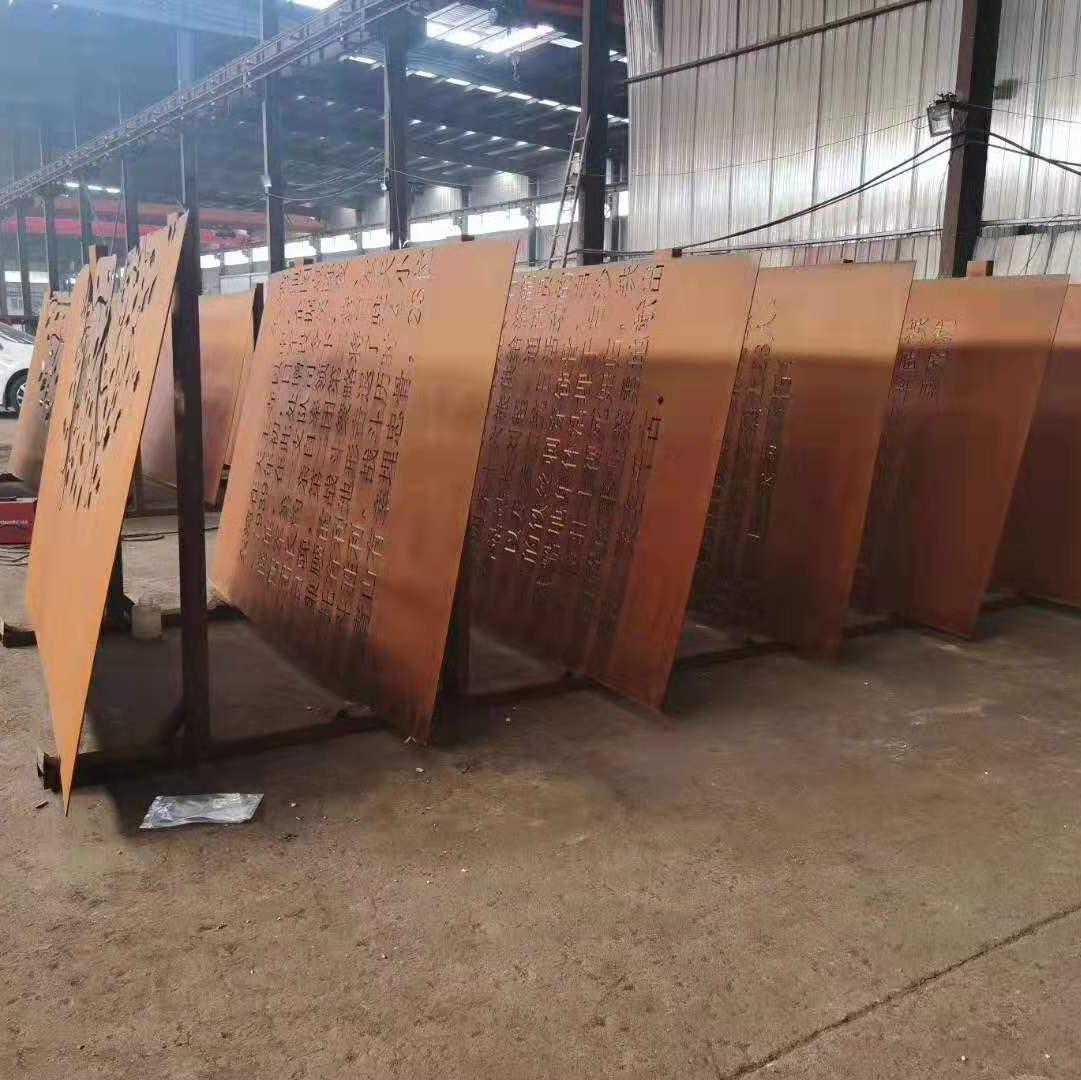

Astm a588 Steel is a high strength low-alloy structural steel with improved atmospheric corrosion resistance for structural steel shapes such as angles, channel and beams, as well as steel plate and bars. It has minimum yield strength of 50ksi and a minimum.

Astm a588 weathering steel sheet is intended primarily for use in welded bridges and other structures where savings in weight or added durability is important along with the longer life cycle due to its corrosion resistant properties.

Astm a588 grade a weathering steel plate has 345Mpa minimum yield point to 100mm thickness. It is suitable for many applications in the bare condition when it is properly exposed to the atmosphere. It has been designed to provide a high resistance to atmospheric corrosion, especially in urban environment.

Astm a588 can be delivered in a condition such as hot rolled, cold rolled, normalized, quenched, tempering, thermal mechanical control process (TMCP), HIC test. Density of 3mm corten steel sheet is 7.85 g/cm3, or 23.55 kg per square meter of material.


Corten Steel Plates Specification

SpecificationsASTM A242/ ASME SA242
DimensionsASTM, ASME and API
StandardJIS, AISI, ASTM, GB, DIN, EN, etc.
Width1500-3200mm
Thickness 2-460mm
Length6000-12000mm
Hot Rolled Corten steel A Plate size3-150mm * 900-4100mm * 3000-18000mm


Chemical Composition

CHEMICAL COMPOSITION
ElementPercentage
C0.1 - 0.22
Cr0.4 - 0.65
Mn0.9 - 1.25
Cu0.25 - 0.4
Fe97 - 98.5
P0.04 max
Si0.15 - 0.3
S0.05 max
V0.02 - 0.1


Mechanical Information

MECHANICAL INFORMATION

ImperialMetric
Density0.28 lb/in37.75 g/cc
Ultimate Tensile Strength70,000psi483 MPa
Yield Tensile Strength50,000psi345 MPa


Corten Steel is A Low Maintenance Solution for Outdoor Applications

There are several benefits to using weathering steel sheets and plates. The natural corrosion resistance of Corten steel gives it a long lifecycle, creating a low-maintenance solution for a variety of uses. Corten steel plates and sheets have high strength properties, which is why the metal sheets are used for structural applications including bridges, building facades, and other large structures. Other industrial applications for weathering steel plates include rail cars, industrial shipping and storage containers, and other transportation uses.



Because of its corrosion- resistant properties, weathering steel is also widely used by architects and artists,  Artists and sculptors use Corten steel because the color of the protective rust layer continues to deepen with weather exposure, which many find visually appealing.



Corten steel plates are a low cost, low maintenance solution for structural and decorative applications.

Overall benefits of using weathering steel sheets include:

Provides natural corrosion resistance

Requires no paint or weatherproofing

Exhibits high strength for heavy or load bearing structures

Requires minimal maintenance

Creates a distinctive, artistic finish



Applications Industry

Pharmaceutical Equipment

Chemical Equipment

Sea Water Equipment

Heat Exchangers

Condensers

Pulp and Paper Industry

Off-Shore Oil Drilling Companies

Power Generation

Petrochemicals

Gas Processing

Specialty Chemicals

Pharmaceuticals


Our Main Export Countries

Middle East - Dubai, Saudi Arabia, Qatar, Oman, Bahrain, Jordan, Kuwait

ASIA - Philippines, Thailand, Singapore, Sri lanka, Bangladesh

Europe - Italy, Belgium, France, Croatia, Spain, UK

South America - Argentina, Chile, Brazil, Paraguay, Peru

Africa - South Africa, Kenya, Nigeria

North America - Canada, Cuba, US


For more information about Corten steel or to discuss using it in your application, please contact us or quote online now.
